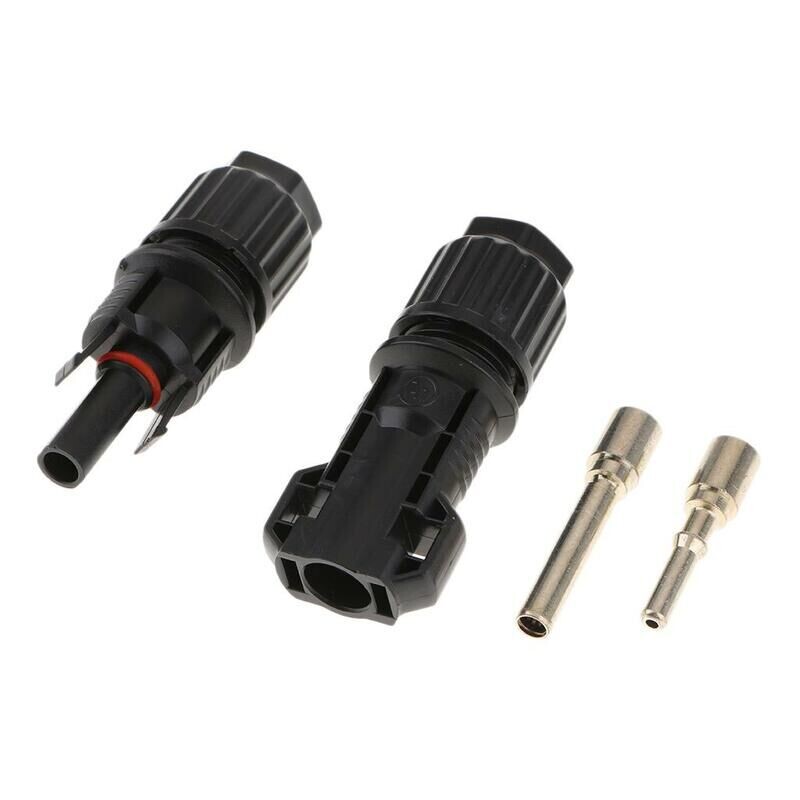

Connector system

Ф2.5mm~6mm

Rated voltage

1000V DC(IEC)¹

Rated current

17A(1.5mm²)

22A(2.5mm²; 14AWG)

30A(4mm²; 6mm²; 12AWG, 10AWG)

Test voltage

6kV(50HZ,1min.)

Ambient temperature range

-40°C... +90°C(IEC) -40°C... +75°C(UL)

Upper limiting temper ature

+105°C(IEC)

Degree of protection, mated

IP67

unmated

IP2X

Contact resistance of plug connectors

0.5mΩ

Safety class

Ⅱ

Contact material

Messing, verzinnt Copper Alloy, tin plated

Insulation material

PC/PPO

Locking system

Snap-in

Flame class

UL-94-V0

Salt mist spray test, degree of severity 5

IEC 60068-2-52
